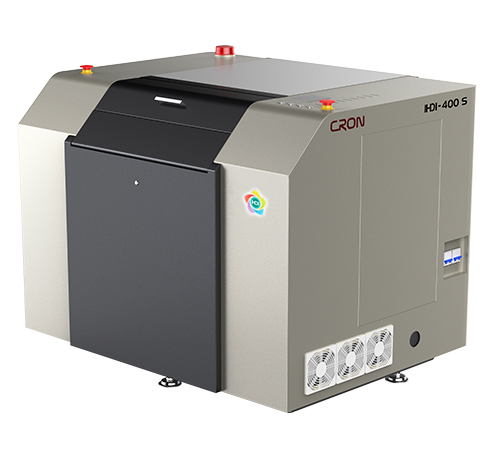

HDI-400
CRON HDI-400 specially designed for high quality narrow web/label printing.
Configured with the advanced CRON laser optical system, CRON HDI-400 reliably provides accurate high definition label prints.
The new CRON HDI-400 is now the first choice for label printers due to its easy operation, image performance, and stability.
Key Technologies
Highly refined external drum
Constant temperature and dual-cooling system
Built-in dedusting system
Dynamic balancing system
V-shape guide
State-of-the-art linear magnetic drive scanning system
Leak-proof drum vacuum channel system
Semi-conductor Multiple Fibre Array and Optical Imaging Technology
| Model | HDI-400S | HDI-400S+ | HDI-400H |
| Max size Min size |
430 × 560 mm (17 × 22 inch)
100 × 100 mm (3.9 × 3.9 inch) |
| Plate loading | Manual mounting, Auto loading |
| Resolution | 4000 dpi or 4800/5080 dpi | 4000/8000 dpi or 4800/5080/9600 dpi |
| # S series speed | 1.0~1.8 m2/h (3.7~2.0J/cm2) 4800/5080 dpi |
| # S+ series speed | 1.0~1.8 m2/h (3.7~2.0J/cm2) 4800/5080 dpi 1.0 m2/h (3.7~2.0J/cm2) 9600 dpi * |
| # H series speed | 2.0~4.5 m2/h (3.7~2.0J/cm2) 4800/5080 dpi 2.0~2.4 m2/h (3.7~2.0J/cm2) 9600 dpi ** |
| Plate type | Digital flexo plate, Letterpress, Ablative film |
| Plate thickness | 0.11mm ~ 3mm |
| Net weight | 500 kg |
| Power supply | Single phase 220V ± 5% 50/60Hz |
| Rated Power | 4.3 KW |
| Dimension | 1160×900×950 mm (W×L×H) |
| Environment | 18~28℃; RH: 40%~60% |
# The speed data in this sheet is for the Max. size.HDI-400 series' maximum peripheral length is 560mm
* When the plate making accuracy is 9600dpi, the maximum output of 2.0mm is not more than 1.1m2/h.
** When the plate making accuracy is 9600dpi, the maximum output of 2.0mm is not more than 1.7m2/h.
CRON reserves the rights to modify or change the design and technical parameters without notifying in advance.
