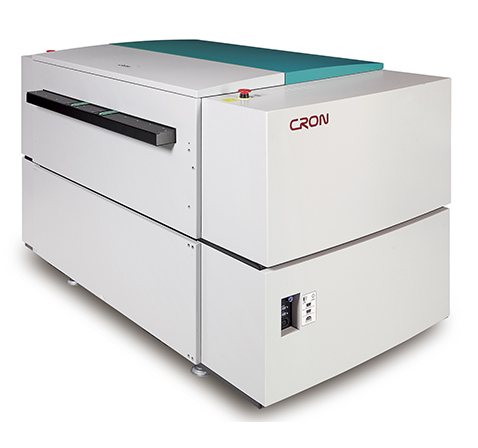

TP26 Series platesetters

CRON 26 Series Thermal platesetters are ideally suited to smaller printing businesses where job turnaround speeds often need to compete with digital alternatives. Output speeds can be tuned to production requirements with models spanning a range from 23 to 63 plates per hour.

All models offer registration accuracy up to 0.01mm and impressive quality results with a tonal range 1%-99% in either conventional or stochastic screening. Capable of handling lighter gauge plates, down to 0.15 mm, the TP 26 product line helps conserve margins by making considerable savings in consumable costs.

Each model in the range is available in two versions, the G models having the latest generation lasers with liquid cooling. Optional plate feeders and handling systems are available to automate and streamline production capabilities.

Model
TP-2624F/G - TP-2664F/G
Max plate size
670×550mm
Min plate size
240×320mm
Laser wavelength
830nm semiconductor laser
Laser channel
16-64
Imaging resolution
1800/2400/2540/2800dpi (optional 3000/3600dpi)
Output speed (plates/hr)
Up to 63 depending on number of laser channels
Plate type
830nm TP plates
Model TP-2624F/G TP-2632F/G TP-2648F/G TP-2664F/G TP-2664F/G
Max plate size 670×550mm
Min plate size 240×320mm
Laser wavelength 830nm semiconductor laser
Laser channel 16 24 32 48 64
Imaging resolution 1800/2400/2540/2800dpi (optional 3000/3600dpi)
Output speed (plates/hr)
23 32 40 53 63
2400dpi(width:650mm)
Plate type 830nm TP plates
Plate thickness 0.15~0.30mm
Registration accuracy 0.01mm
Auto-loader AL26-200,AL26-50M3
Max loading quantity 200 / 50x3
Dimensions W×L×H:970×1375×1065mm
Net weight 900kg
Power supply 1-phase AC 220-240V±5% 50/60Hz 4.6KW
Condition 18~25℃; RH:20~70%
