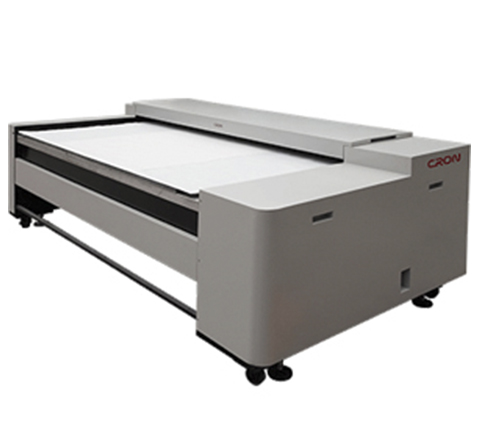

AL72 Autoloader series
Model
AL66/72-100
Cassettes
1
Max quantity
100
Max loading quantity
100 plates
Max loading size
1850mm x 1422mm
Min loading size
650mm x 550mm
Types of plate
UV/Thermal
| Model | AL66/72-100 |
| Cassettes | 1 |
| Max loading quantity per cassette (0.3 plates) | 100 |
| Max loading quantity | 100 plates |
| Plates |
| Max loading size | 1850 mm x 1422 mm |
| Min loading size | 650 mm x 550 mm |
| Types of plate | UV/Thermal |
| Size & weight |
| Dimensions (L x W x H) |
2640 x 1475 x 930 mm |
| Packing size (L x W x H) |
2850 x 1750 x 1200 mm |
| Machine net weight | 800 kg |
| Gross Wwight (including packaging) |
| Power & working environment |
| Power supply | 1-phase AC 220-240 V±5% 50/60 Hz |
| Power | 1.5 KW |
| Humidity range | 20 - 70% (non condensing) |
