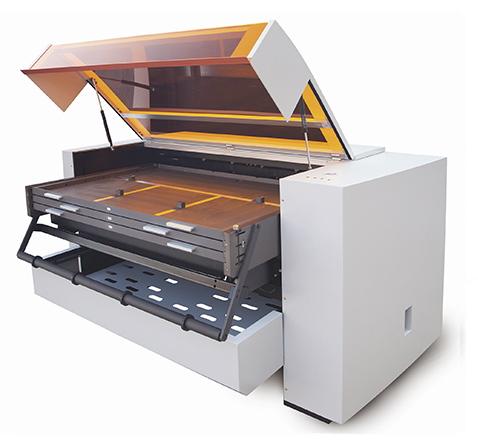

AL46 Autoloader series
Single and multiple cassette autoloaders
Model
AL46-200 - AL46-50M3
Cassettes
1 or 3 depending on model
Max quantity per cassette
200, 500 or 50 depending on model
Max loading quantity (0.3 plates)
200 plates, 500 plates or 150 plates (50 x 3) depending on model
Max loading size
1160mm x 940mm
Min loading size
450mm x 370mm
Types of plate
UV/Thermal
| Model | AL46-200 | AL46-500 | AL46-50M3 |
| Cassettes | 1 | 1 | 3 |
| Max loading quantity per cassette (0.3 plates) | 200 | 500 | 50 |
| Max loading quantity | 200 plates | 500 plates | 150 plates (50 x 3) |
| Plates |
| Max loading size | 1160mm x 940 mm |
| Min loading size | 450mm x 370 mm |
| Types of plate | UV/Thermal |
| Size & weight |
| Dimensions (L x W x H) |
1845 x 1150 x 1020mm | 1850 x 1225 x 1100 mm |
| Packing size (L x W x H) |
2100 x 1560 x 1380 mm | 2150 x 1700 x 1470 mm |
| Machine net weight | 430 kg | 580 kg |
| Gross weight (including packaging) | 530 kg |
| Power & working environment |
| Power supply | 1-phase AC 220-240 V±5% 50/60 Hz |
| Power | 1.5 KW |
| Humidity range | 20 - 70% (non condensing) |
