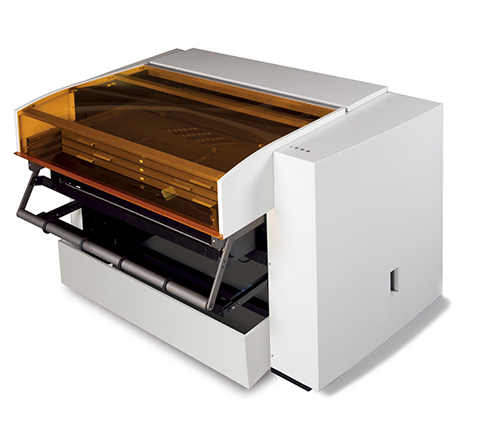

AL26 Autoloader series
Single and multiple cassette autoloaders
Model
AL26-200 - AL26-50M3
Cassettes
1 or 3 depending on model
Max quantity per cassette
200 or 50 depending on model
Max loading quantity (0.3 plates)
200 plates or 150 plates (50 x 3) depending on model
Max loading size
670mm x 560 mm
Min loading size
320mm x 240 mm
Types of plate
UV/Thermal
| Model | AL26-200 | AAL26-50M3 |
| Max quantity per cassette | 200 | 50 |
| Max loading quantity (0.3 plates) | 200 plates | 150 plates (50 x 3) |
| Plates |
| Max loading size | 670mm x 560 mm |
| Min loading size | 320mm x 240 mm |
| Types of plate | UV/Thermal |
| Size & weight |
| Dimensions (L x W x H) |
1360 x 780 x 1030 mm |
| Packing size (L x W x H) |
1680 x 1180 x 1220 mm |
| Machine net weight | 230 kg |
| Gross weight (including packaging) |
| Power & working environment |
| Power supply | 1-phase AC 220-240 V±5% 50/60 Hz |
| Power | 1.5 KW |
| Humidity range | 20 - 70% (non condensing) |
